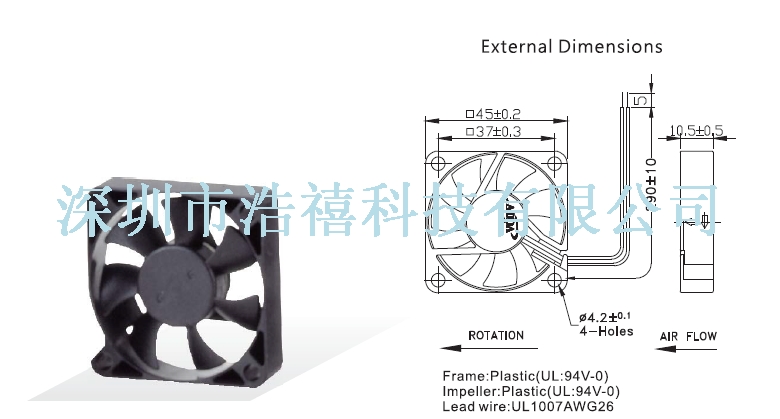

| Fan = DC-Fan | Size = 45x45x10 | Speed = | Flow = | Noise = |
| Bearing type: ◎=Ball ※=Sleeve ●=Hypro Bearing | |||||||||
| Frame Size | Model No | Bearing | Volt. (VAC) | Current (A) | Speed (rpm) | Air Flow (CFM) | Pressure (InAq) | Noise (dB/A) | |
| 45x45x10(t) | AD4505LB-G70(T) | ◎※● | 5 | 0.09 | 3800 | 5.82 | 0.054 | 17.5 |  |
| 45x45x10(t) | AD4505MB-G70(T) | ◎※● | 5 | 0.12 | 4500 | 7.01 | 0.072 | 22.0 | |
| 45x45x10(t) | AD4505HB-G70(T) | ◎※● | 5 | 0.18 | 5500 | 8.67 | 0.103 | 27.4 | |
| 45x45x10(t) | AD4512LB-G70(T) | ◎※● | 12 | 0.06 | 3800 | 5.82 | 0.054 | 17.5 | |
| 45x45x10(t) | AD4512MB-G70(T) | ◎※● | 12 | 0.06 | 4500 | 7.01 | 0.072 | 22.0 | |
| 45x45x10(t) | AD4512HB-G70(T) | ◎※● | 12 | 0.09 | 5500 | 8.67 | 0.103 | 27.4 | |
| 45x45x10(t) | AD4524LB-G70(T) | ◎※● | 24 | 0.03 | 3800 | 5.82 | 0.054 | 17.5 | |
| 45x45x10(t) | AD4524MB-G70(T) | ◎※● | 24 | 0.05 | 4500 | 7.01 | 0.072 | 22.0 | |
| 45x45x10(t) | AD4524HB-G70(T) | ◎※● | 24 | 0.06 | 5500 | 8.67 | 0.103 | 27.4 | |
Note：
1."Current"栏位所记载的数据仅为实际测量值，并且将有可能不同于安规电流值；若有进一步需求，请直接与浩禧业务人员联络，谢谢！
2."Model No"栏位内，"＊"符号代表为"preliminary"机种
